SMD MLCC SELECTION GUIDE

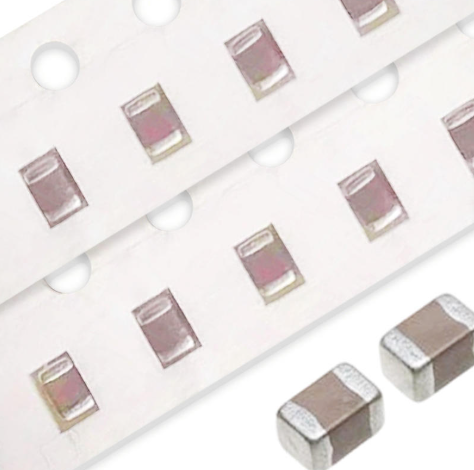

When designing or purchasing electronic components, 0402 and 0603 MLCCs are two of the most commonly considered SMD ceramic capacitor sizes. Although they are both compact multilayer ceramic capacitors, the difference in physical size can influence capacitance range, voltage options, PCB space and assembly requirements.
MLCC stands for Multilayer Ceramic Capacitor. It is a surface-mount passive component manufactured using multiple ceramic dielectric layers and internal electrodes.
In the commonly used EIA naming system, the first two digits and the second two digits describe the approximate imperial package dimensions. A 0402 MLCC is approximately 1.0 mm × 0.5 mm, while a 0603 MLCC is approximately 1.6 mm × 0.8 mm.
This means that a 0402 component occupies less PCB area than a 0603 component. However, smaller size does not automatically mean better performance for every application.
Feature | 0402 MLCC | 0603 MLCC |
|---|---|---|
Approx. Size | 1.0 × 0.5 mm | 1.6 × 0.8 mm |
PCB Space | Very Low | Low |
Typical Application | Compact Electronics | General Electronics |
Assembly | Requires Precise SMT Handling | Generally Easier to Handle |
The biggest advantage of a 0402 MLCC is its compact footprint. For modern electronic products where PCB space is limited, reducing component size can help engineers increase circuit density.
0402 MLCCs are therefore attractive for compact consumer electronics, communication equipment, modules and other applications where board space is an important design consideration.
However, engineers should also consider assembly capability. Because the component is smaller, accurate PCB land patterns, placement equipment and manufacturing control become increasingly important.
Best reason to choose 0402: PCB space is limited and the required electrical specification can be achieved within the available 0402 product range.
0603 MLCCs provide a useful balance between compact size and practical manufacturing. The larger package gives designers more physical area while still maintaining a relatively small footprint.
This makes 0603 a common choice for consumer electronics, industrial electronics, communication equipment, control systems and many general-purpose PCB designs.
For purchasing teams, another advantage is that 0603 products are available across many different capacitance, dielectric and voltage combinations.
X7R is a Class II ceramic dielectric commonly used when designers need relatively high capacitance in a compact package.
X7R MLCCs are widely considered for applications such as decoupling, filtering, power supply circuits and general electronic systems.
However, buyers should understand that the nominal capacitance printed in a product specification does not tell the entire story. Actual electrical behavior depends on factors including applied DC voltage, temperature and the specific component design.
Important: Do not replace an MLCC only by matching capacitance. Always verify dielectric, rated voltage, tolerance, package size and application requirements.
There is no universal answer. The correct choice depends on the design and procurement requirements.
PCB space is extremely limited.
The circuit requires a very compact component footprint.
Your SMT production line is capable of handling smaller components.
The required capacitance and voltage combination is available in 0402.
You need a slightly larger and easier-to-handle package.
The PCB has sufficient available space.
You need a broader range of practical capacitance and voltage combinations.
You want a balanced solution for general electronic applications.
When contacting an MLCC supplier, providing a complete specification can significantly speed up quotation and product matching.
Package: 0402 / 0603 / 0805 / 1206
Capacitance: Example: 100nF
Dielectric: X7R / X5R / C0G
Rated Voltage: Example: 50V / 100V
Tolerance: Example: ±5% / ±10%
Quantity: Required pieces or reels
Application: Optional but recommended
A professional supplier should be able to help purchasing teams identify the correct product specification rather than simply sending a price.
For overseas procurement, communication is especially important. Buyers may need product information, specifications, packaging details, samples and delivery coordination before approving a supplier.
Barron MLCC supplies multilayer ceramic capacitors for international electronics procurement, including compact SMD package options and different capacitance and voltage specifications.
The choice between 0402 and 0603 MLCCs should be based on the complete electrical and mechanical requirements of the application.
0402 is attractive when PCB space is extremely limited, while 0603 offers a practical balance between compact size, component handling and available specifications.
Before placing an order, always confirm the package size, capacitance, tolerance, dielectric, rated voltage and required quantity with your MLCC supplier.
