High‑capacitance SMD MLCC are widely adopted in industrial power supply, motor driver, industrial inverter, energy‑storage auxiliary circuit and charging‑module hardware across European market. Designers hope to use large‑value MLCC to replace part of electrolytic capacitors, for benefits of small footprint, low ESR and long service life. However, high‑cap MLCC brings unique technical and supply‑chain challenges. Many industrial buyers only focus on marked nominal capacitance value on datasheet and ignore real‑world performance degradation, resulting in unstable equipment operation or supply‑delivery difficulty. This article sorts out core pain‑points and practical procurement suggestions for high‑cap MLCC.
This is the most well‑known problem for high‑value X7R/X5R MLCC. Under applied DC working voltage, actual effective capacitance will drop significantly, especially for high‑cap models. For example, a 100μF X7R MLCC under certain DC bias may lose large percentage of its nominal capacitance. If circuit design only calculates based on nominal parameter, actual decoupling and filtering capacity will be insufficient, generating power‑supply ripple abnormality.
Procurement suggestion: Never select high‑cap MLCC purely by nominal capacitance. Request supplier to provide DC‑bias characteristic curve. Reserve enough voltage margin for industrial power circuits. Do not let working voltage approach component full rated voltage.
High‑cap MLCC mostly adopt X7R or X5R dielectric. Even within rated temperature scope, capacitance will fluctuate with ambient temperature change. European industrial devices may face wide temperature range from cold winter outdoor equipment to high‑temperature cabinet internal environment. You need to confirm capacitance change curve under full working‑temperature window, instead of only reading capacitance value at room‑temperature test condition.
Most high‑cap MLCC rely on larger case size such as 1210,1812 to realize big capacitance. Larger‑size multilayer ceramic chips are more sensitive to PCB bending stress, mechanical shock and thermal stress. Once micro‑cracks generate inside ceramic dielectric layer, component may show intermittent failure or complete open‑circuit risk after long‑term operation. For industrial equipment with vibration scenario, soft‑termination high‑cap MLCC solution should be evaluated preferentially.
Global high‑cap MLCC production capacity is tight. High‑value MLCC consumes more rare‑raw‑material and complex‑stack‑layer production process. Original brand manufacturers allocate capacity priority to large‑volume automotive and server customers. Medium‑sized European industrial enterprises often face long lead‑time or allocation order situation when purchasing high‑cap MLCC from famous original brands.
Emphasize real‑working‑condition performance instead of nominal value: Ask for DC‑bias curve, temperature‑characteristic curve, not only simple datasheet parameter table.
Evaluate soft‑termination option for vibration‑prone equipment: For inverter, motor‑drive and outdoor industrial devices, soft‑termination high‑cap MLCC reduces cracking failure risk.
Reserve reasonable safety margin on voltage and capacitance: Considering DC‑bias attenuation, select proper higher‑rated‑voltage specification, avoid operating component near upper‑limit voltage.
Carry out full‑condition sample verification: Complete high‑low‑temperature test, power‑on aging test with real hardware before mass‑order placing. Room‑temperature short‑time test cannot simulate real industrial working condition.
Build multi‑source sourcing strategy: Add qualified alternative supplier into AVL list in advance, to cope with possible shortage of original‑brand high‑cap MLCC.
High‑cap MLCC has advantages of low ESR, small size and long lifespan, but it also has inherent performance limitations. When required capacitance is extremely high, pure MLCC solution may become too costly or cannot satisfy performance target. Design teams need to evaluate mixed‑solution scheme: combining high‑cap MLCC with polymer aluminum capacitor or film capacitor, to balance space, cost and reliability target.
Our application engineering team can give objective suggestion for your BOM: whether high‑cap MLCC is suitable for your circuit, or hybrid capacitor solution is more cost‑effective for your industrial equipment.

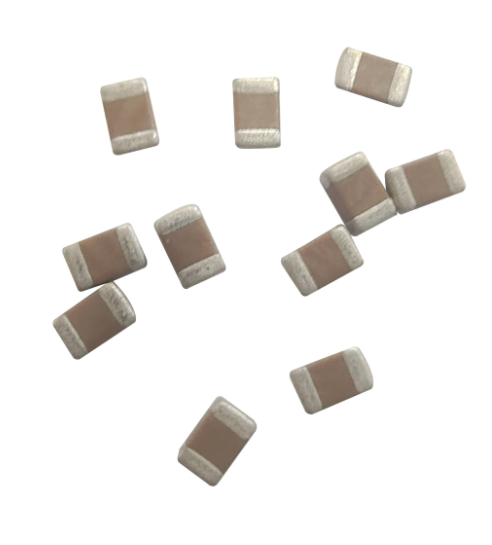

BarronMLCC supplies series of high‑cap SMD MLCC adopting X7R & X5R dielectric, covering mainstream large‑size 1206,1210,1812 packages. We serve European industrial‑equipment customers including industrial‑inverter, power‑supply‑manufacturer and charging‑module OEMs. We can provide DC‑bias curve, temperature‑performance data sheet and support sample delivery for your hardware validation. For customers with long‑term recurring high‑cap MLCC demand, we support capacity reservation consultation to stabilize supply lead‑time.
All high‑cap MLCC batches comply with RoHS3 and REACH regulation, and we can provide batch‑by‑batch compliance documents for your European import customs clearance and incoming‑quality audit.
High‑cap MLCC is attractive for modern industrial hardware, but you cannot only focus on nominal capacitance value. DC‑bias attenuation, temperature drift, mechanical reliability and supply stability are all critical factors for successful mass‑production. If you are troubled by high‑cap MLCC performance‑matching or long‑lead‑time problem, feel free to send your BOM information and working‑condition parameters to BarronMLCC technical team for free‑of‑charge sourcing consultation.
