Component shortage, long lead‑times and EOL (End‑of‑Life) announcements happen frequently in the global MLCC market. Many European and North‑American OEM, ODM and EMS buyers are forced to search for alternative MLCC parts to keep mass‑production lines running. Simple part‑number lookup on third‑party databases is not enough. Direct substitution without full parameter verification will cause circuit malfunction, product failure or expensive product rework. This article explains critical parameters you must check during MLCC cross‑reference, common substitution mistakes and professional BOM replacement workflows supported by BarronMLCC.
A lot of procurement engineers only compare three basic indicators: capacitance value, rated voltage and case size. However, MLCC actual performance is affected by multiple hidden parameters. Even if two components share same capacitance, voltage and footprint, they may behave differently on real PCBA boards.
Typical failures caused by improper cross‑reference:
Capacitance drop under DC bias leading to power‑supply ripple issue;
Different dielectric temperature characteristics causing unstable performance in high‑low temperature environment;
Different ESR / ESL value affecting filter‑circuit performance;
Mechanical structure difference: standard termination vs soft‑termination, triggering ceramic cracking under vibration or PCB bending;
Inconsistent packaging specifications, causing SMT pick‑and‑place failure.
For consumer‑product prototype projects, simple substitution may pass short‑time testing. But for industrial, automotive and medical‑related mass‑production hardware, incomplete cross‑reference verification will bring huge hidden risks.
Dielectric type C0G(NP0), X7R, X5R, Y5V determines temperature drift, DC bias characteristic and service life. You cannot casually replace X7R with X5R, even with identical capacitance and voltage. X5R has narrower working temperature range, and larger capacitance loss under high temperature. For long‑life industrial equipment working above 85℃, X5R is not a qualified replacement for X7R. Similarly, high‑precision circuits requiring C0G stability cannot adopt X7R as alternative parts.
Common tolerance includes ±0.5%, ±1%, ±5%, ±10%, ±15%, ±20%. For signal‑matching and timing‑related circuits, tight‑tolerance MLCC cannot be replaced by wide‑tolerance versions. Loose tolerance substitution will shift circuit parameters and affect whole‑machine performance.
Rated voltage is not the only standard. Even two MLCCs with same rated voltage may show different effective capacitance under actual DC bias. For power‑decoupling circuits, you need to refer to manufacturer DC‑bias curve data sheet rather than only nominal parameters. Always reserve sufficient voltage safety margin after substitution.
Standard termination vs soft‑termination MLCC is easy to overlook. For automotive, transportation and vibration‑intensive devices, soft‑termination structure can absorb PCB stress and prevent internal ceramic micro‑cracks. If original BOM uses soft‑termination MLCC, standard‑termination parts cannot be used as direct replacement without mechanical reliability test.
Verify inch‑metric conversion: 0603(inch)=1608(metric),1206(inch)=3216(metric). Make sure alternative component footprint perfectly matches original PCB pad layout. Mismatched size will bring SMT soldering defect risks such as tombstoning or insufficient solder paste.
Verify RoHS3, REACH SVHC, halogen‑free requirement. Automotive projects need AEC‑Q200 qualification. When you replace original brand parts, alternative components must satisfy same regulatory rules for target market, otherwise goods may be detained by European or North‑American customs.
Collect full datasheet of original MLCC part number, record all key parameters mentioned above.
Send original part number and application scenario to component supplier technical team for preliminary screening of alternative candidates.
Obtain alternative MLCC samples and complete lab testing: temperature cycle test, DC‑bias performance test, vibration test according to project requirement.
Carry out complete prototype machine verification on real hardware.
After sample pass, finish AVL vendor qualification, add alternative part into approved BOM for mass‑production.
Do not skip sample‑testing phase directly for mass‑order procurement, even if parameter tables look fully matched.
Facing original‑part shortage, many overseas customers turn to us for BOM substitution solution. Our engineering team provides free‑of‑charge MLCC cross‑reference service for European and North‑American buyers. Just provide your original part number, application scenario and special requirement such as soft‑termination, halogen‑free or automotive grade. We will filter matching MLCC models, provide datasheets and support sample delivery for your qualification test.

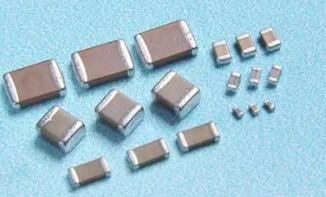

Our mainstream SMD MLCC series cover 0402,0603,1206,1210,1812 case size with C0G, X7R, X5R dielectric. Whether you are dealing with EOL notice or long‑lead‑time trouble, we can deliver qualified alternative component options for consumer electronics, industrial control, charging‑equipment and non‑safety automotive projects.
Cross‑reference is not simple one‑to‑one number mapping. It is a set of parameter comparison plus practical verification process. Rushing into mass‑production substitution will bring expensive risks. If you are struggling to find proper MLCC alternatives for your BOM, contact BarronMLCC technical support team today to get professional sourcing suggestion.
