Selecting the correct MLCC chip capacitor is an important step in electronic product design and component procurement. Although MLCCs are small passive components, their electrical characteristics can have a significant influence on circuit performance, reliability, PCB layout, and manufacturing.
For international buyers, purchasing teams and engineers, the part number alone is not always enough to understand whether a capacitor is suitable for a specific application. A proper selection process should consider capacitance, rated voltage, dielectric type, tolerance, temperature characteristics, package size, operating conditions, and application requirements.

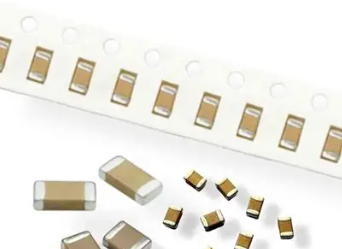

MLCC stands for Multilayer Ceramic Capacitor. An MLCC is a surface-mount ceramic capacitor constructed with multiple internal ceramic dielectric layers and electrode layers. Its compact size and high capacitance density make it suitable for a wide range of electronic equipment.
MLCCs are commonly used for decoupling, filtering, noise reduction, signal circuits, power supply circuits, and other electronic functions. The appropriate component depends on the electrical and environmental requirements of the circuit.
Capacitance is one of the most important parameters when selecting an MLCC. It is normally expressed in units such as pF, nF, or μF.
A buyer may begin with a required value such as 100 pF, 1 nF, 100 nF, 1 μF, or another value specified by the circuit design. However, the nominal capacitance should not be considered independently from voltage, temperature, tolerance, and dielectric characteristics.
Always confirm the complete requirement:
Nominal capacitance
Capacitance tolerance
Rated voltage
Dielectric type
Temperature range
Package size
The rated voltage indicates the voltage level associated with the capacitor specification. Buyers should not select a component only because its nominal voltage appears close to the circuit operating voltage.
The actual circuit environment may include voltage variation, transient conditions, temperature changes, and other operating factors. Engineers and purchasing teams should therefore follow the component specification and the design requirements when determining an appropriate voltage rating.
For procurement, it is useful to specify the required voltage directly in the RFQ so that suppliers can quote the correct product rather than making assumptions.
Different ceramic dielectric systems provide different electrical characteristics. Among commonly encountered MLCC types are C0G, X7R, and X5R.
C0G ceramic capacitors are commonly selected where stable electrical characteristics are important. They are often used in timing, filtering, RF, high-frequency, and precision-related circuits depending on the specific design requirements.
X7R MLCCs are widely used as general-purpose ceramic capacitors in many electronic circuits. They can provide higher capacitance values in relatively compact packages compared with many Class 1 ceramic capacitor types.
X5R is another commonly used Class 2 dielectric characteristic. It is frequently found in compact electronic designs where relatively high capacitance is required.
However, buyers should always review the actual manufacturer specification instead of assuming that all products with the same dielectric designation behave identically.
Package size is a major consideration for surface-mount production. Common MLCC package designations include 0402, 0603, 0805, and 1206 in imperial terminology.
Common Size | Typical Procurement Consideration |
|---|---|
0402 | Very compact PCB footprint and suitable for high-density designs |
0603 | Compact size with broad use in SMT electronics |
0805 | Larger footprint and often easier handling than very small packages |
1206 | Larger package suitable when PCB space and electrical requirements allow |
The actual dimensions should always be confirmed against the applicable specification because metric and imperial designations can be different. This is particularly important when an overseas purchasing team is comparing supplier quotations.
Capacitance tolerance describes the allowed variation around the nominal capacitance. Depending on the component and application, different tolerance options may be available.
For general-purpose circuits, a wider tolerance may be acceptable. For precision applications, a tighter tolerance may be required.
The purchasing team should therefore avoid replacing an approved MLCC with another product solely because the nominal capacitance and voltage appear identical.
Temperature is another important consideration. Electronic products may operate across different ambient conditions, and the electrical behavior of ceramic capacitors can depend on the selected dielectric system and operating conditions.
For applications exposed to demanding temperature conditions, buyers should review the manufacturer's detailed technical specification and confirm the appropriate product category before purchasing.
For certain Class 2 ceramic capacitors, the effective capacitance under applied DC voltage can be an important design consideration. The nominal capacitance printed in a part specification does not necessarily represent the capacitance under every operating condition.
This means that engineers should consider actual operating voltage and temperature when evaluating certain MLCCs. Modern component selection tools can provide characteristic information under specified operating conditions, which can be useful during the design verification process.
A detailed request for quotation helps suppliers provide more accurate offers. Instead of simply writing “MLCC 100 nF,” a buyer should provide as much relevant information as possible.
Part number or equivalent part number
Capacitance
Voltage rating
Tolerance
Dielectric
Package size
Required quantity
Application
Packaging requirement
Target delivery schedule
For international procurement, a supplier should not simply quote a price. The supplier should understand the technical information supplied by the buyer and clearly identify any differences between the requested product and the proposed alternative.
This is especially important when buyers are considering an equivalent part. Any proposed substitute should be evaluated against the original electrical, mechanical, environmental, and application requirements.
Barron MLCC provides an international sourcing channel for customers looking for MLCC chip capacitors. Send your required specifications, part numbers, quantities, and application information for quotation review.
Website: barronmlcc.com
Choosing an MLCC is a technical and procurement decision. Capacitance, voltage, tolerance, dielectric type, temperature characteristics and package size should be evaluated together rather than separately.
For international electronics buyers, a clear RFQ and a professional supplier communication process can reduce the risk of receiving an unsuitable component. By defining the complete specification before quotation, buyers can improve purchasing efficiency and build a more reliable component supply chain.
